| Comparison of both presses | SP 380 | SP 380 MAX |
| Volume of one press cycle: | 1,5 m3 | 2 m3 |
| Total press volume: | 2,9 m3 | 4,8 m3 |
| Press slide dimensions: | 1,96 x 0,6m | 1,9 x 0,6 m |
The body of press has reinforced floor from Hardox.
The hopper volume with an elevated hopper can be up to 7 m3. The standard hopper dimensions are: 2.1 x 2.2 x 1.2 m.
During one pressing cycle, the slide can press up to 2 m3 of material into the container; the pressing area dimension in front of the slide is 1.7 m x 1.9m.
The stationary press SP380MAX can apply pressing force 38 tonnes. Whilst applying such pressure, 5 to 6 tonnes of hard cardboard can be pressed in the additional container of 30m3 volume.
The pressing cycle is reduced to 35 sec. Standard motor is 7.5 kW.
The press can be delivered with a loader or a combination of the automatic opening of the lid with a loader. The loader can be placed on the side (right or left) and thein the front of the machine.
The press is produced in the automat version only. The press is connected to the container automatically by means of hydraulic hooks. The connection enables the automatic opening of the container shifting lid “guillotine”. Upon filling the container, it is automatically closed by means of the “guillotine” and disconnected from the press.
The hydraulic unit is placed away from the closed area side enabling a good access for the machine maintenance. Upon request, it can be placed independently on a platform.
Stationary press SP 380MAX is assembler on a flat concrete base.
The press is controlled by means of buttons on the control panel. Upon customer request, the sound and optical indication of the press operation, the container fullness, and GSM module can be installed.
| TECHNICAL DATA | SP380 MAX |
| Volume | 20;25;30 m³ |
| Hopper volume | 2,8 m³ |
| Hopper length over press slide | 2 000 mm |
| Hopper width over press slide | 2 000 mm |
| Hopper height over press slide | 700 mm |
| Volume of press cycle | cca 2,4 m³ |
| Press cycle time | cca 35 sec. |
| Press slide width | 1 900 mm |
| Press slide height | 600 mm |
| Hopper length in front of press slide | 1 700 mm |
| Volume per hour | cca 199 m3 |
| Working pressure | 240 bar |
| Pressing power | max 38 t |

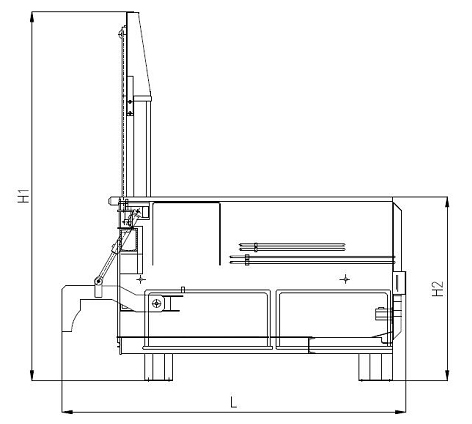

| Length L | 2 500 mm |
| Width | 2 600 mm |
| Height H1 | 3 250 mm |
| Infill height H2 | 1 640 mm |
| Electric input | 7,5 kW |
| Voltage | 3 x 400 V |
| Protection | 32 A |
| Weight | 2745 kg |
| Certification | CE |

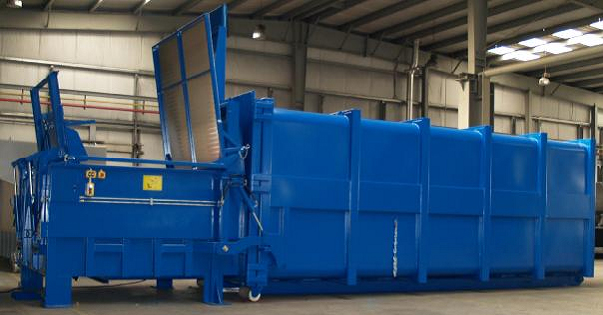

Containers ARK
With the stationary press SP380 MAX we supply additional containers ARK with the volume 30 m3 only.
Containers have cone-shaped side walls. Default containers can be equipped with mechanical device “chain wall” which helps releasing the pressed material during emptying procedure.
Guiding lines (short or long ) are mounted in front of the press to help guide the container to the press.
Optional accessories:
- Hopper lid – steel
- Aluminium lid cover
- Automatic lid opening when the loader is used
- Lid locking
- High hopper or tubes, funnel
- High sides
- Optical sensor for the start-up
- Rubber sealing of the door or the flap (partial or complete)
- Flexible placement of hydraulic equipment
- Stronger pump and engine
- Oil cooling or heating
- GSM module
- Remote control from the platform
- Two component paint
- Safety handrail Víko násypky
