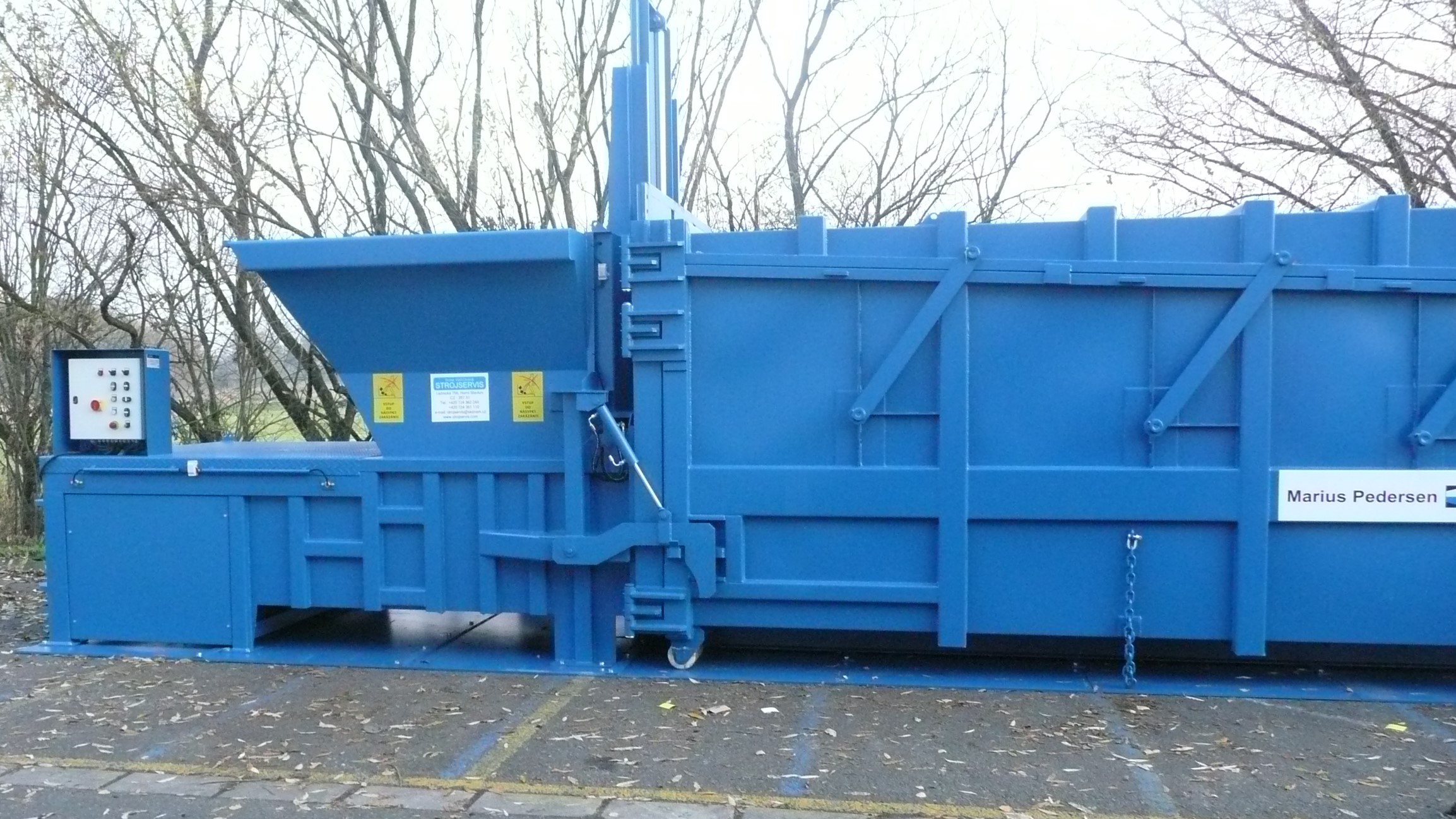

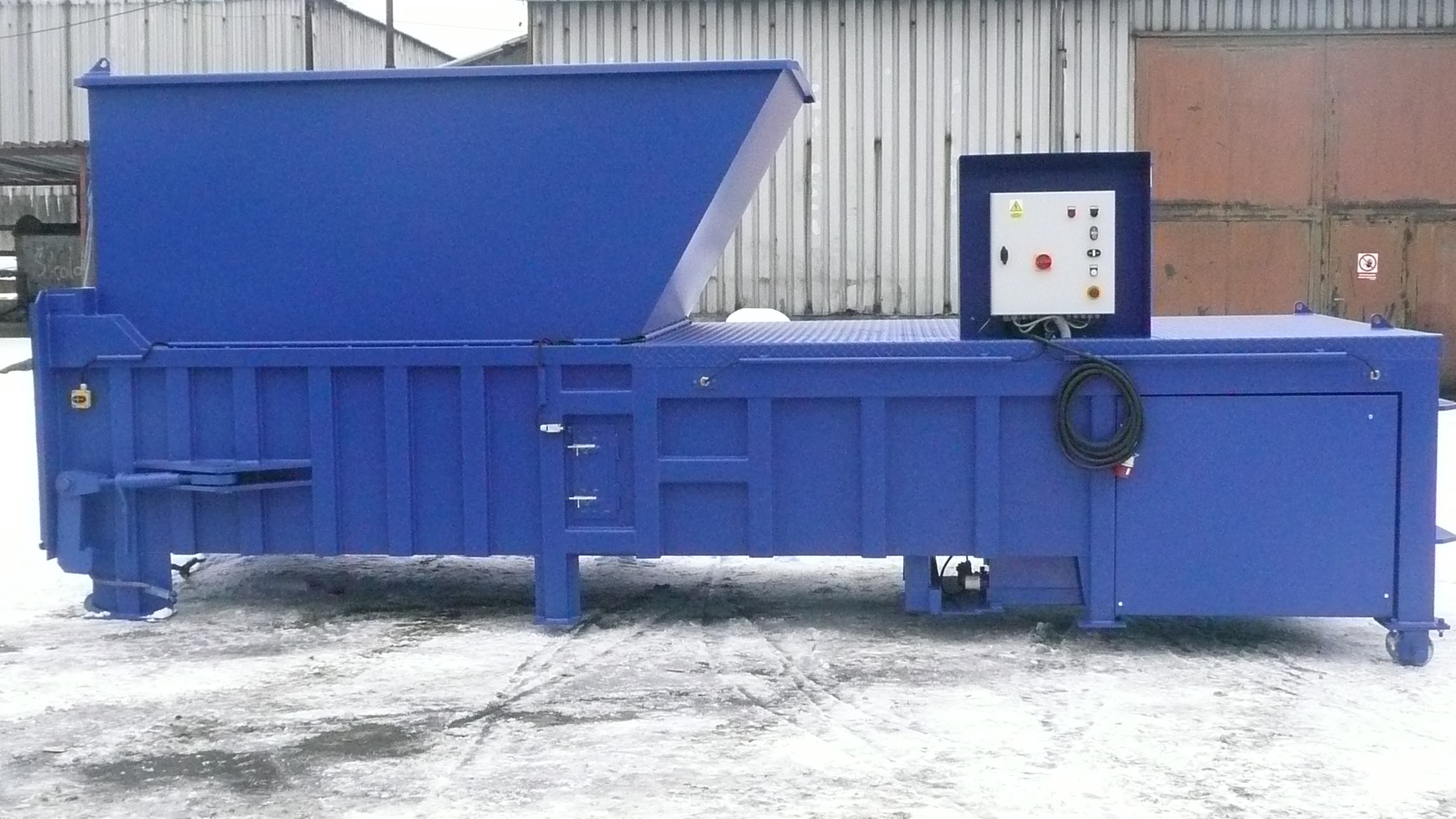

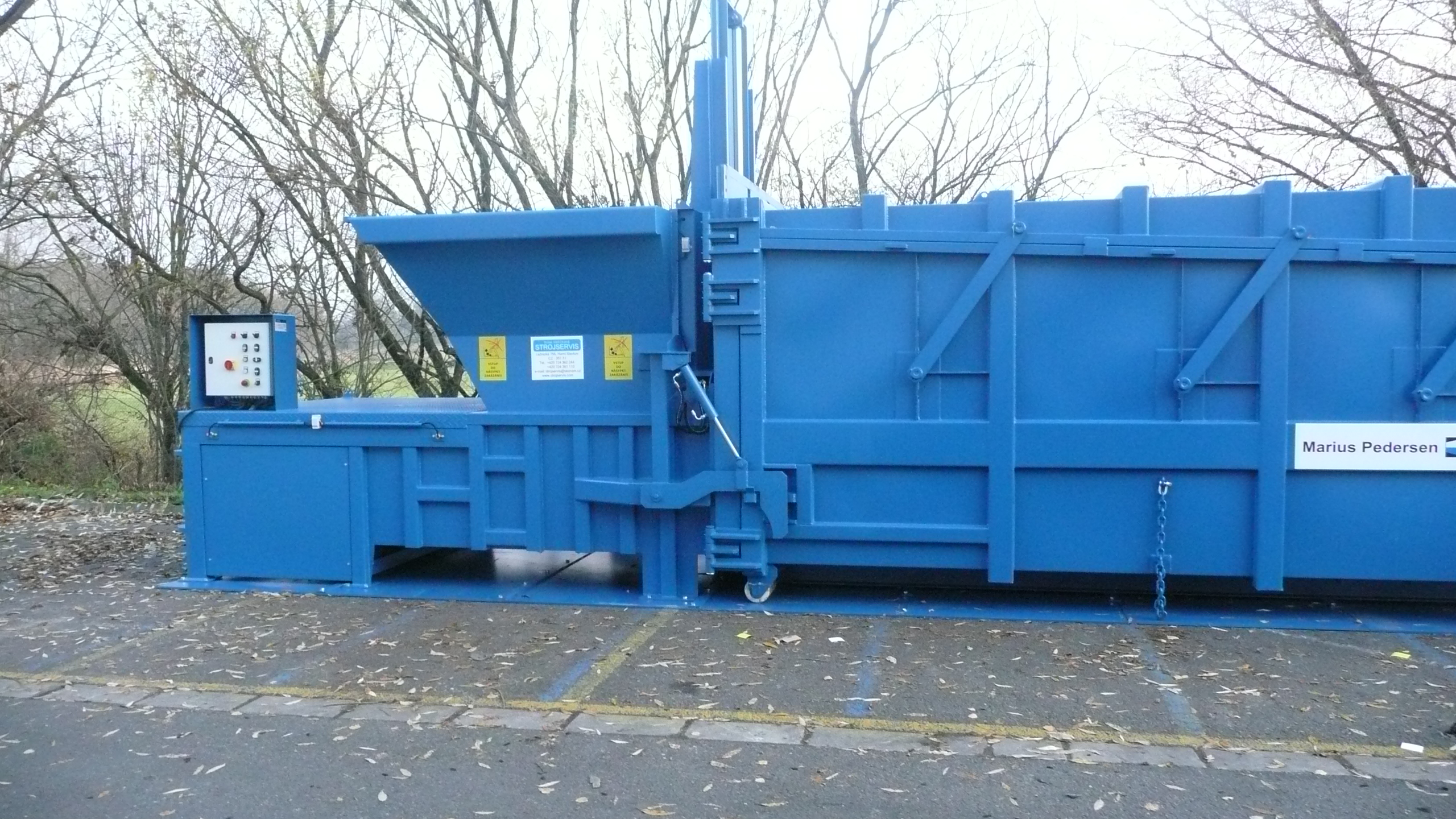

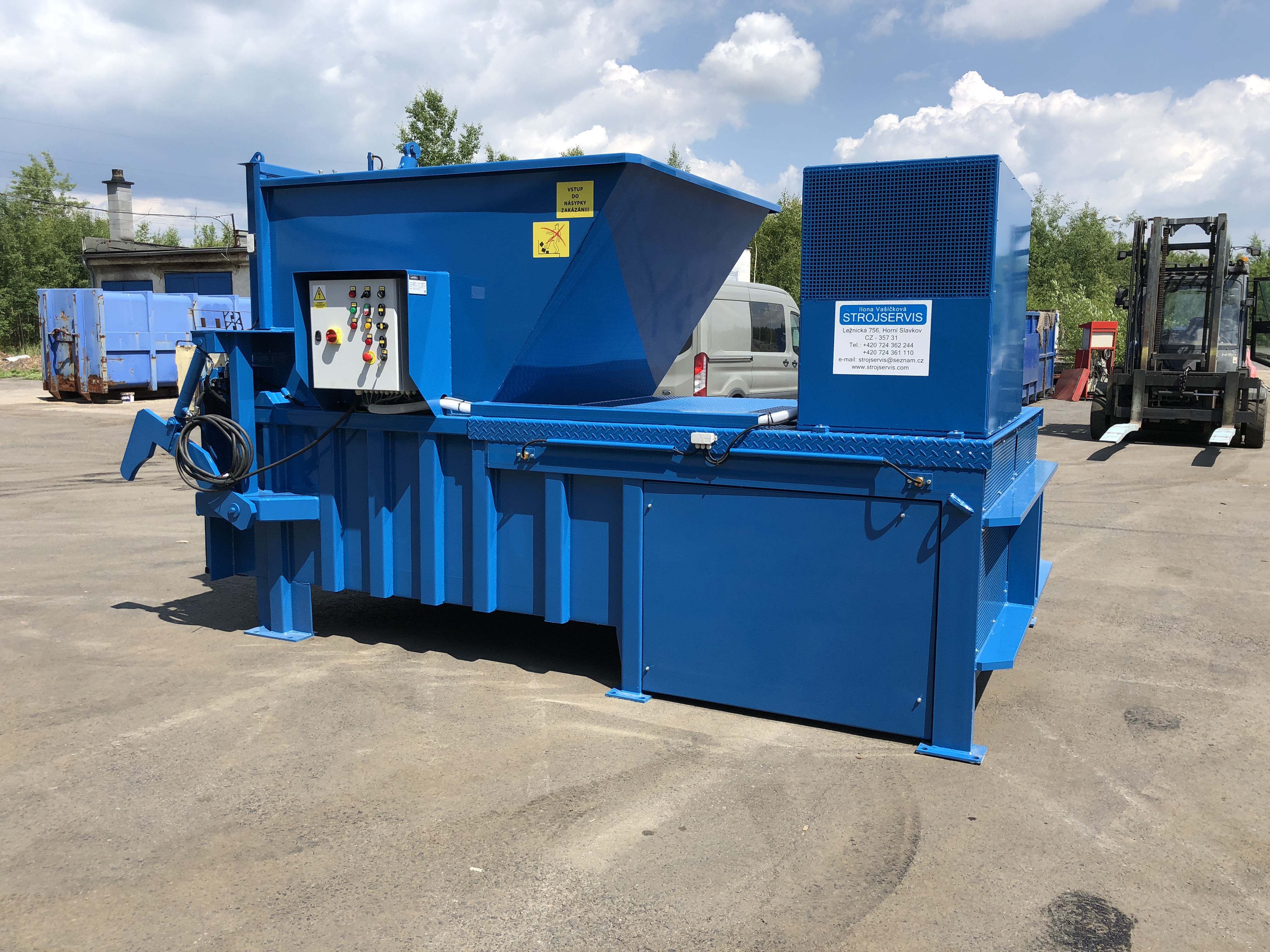

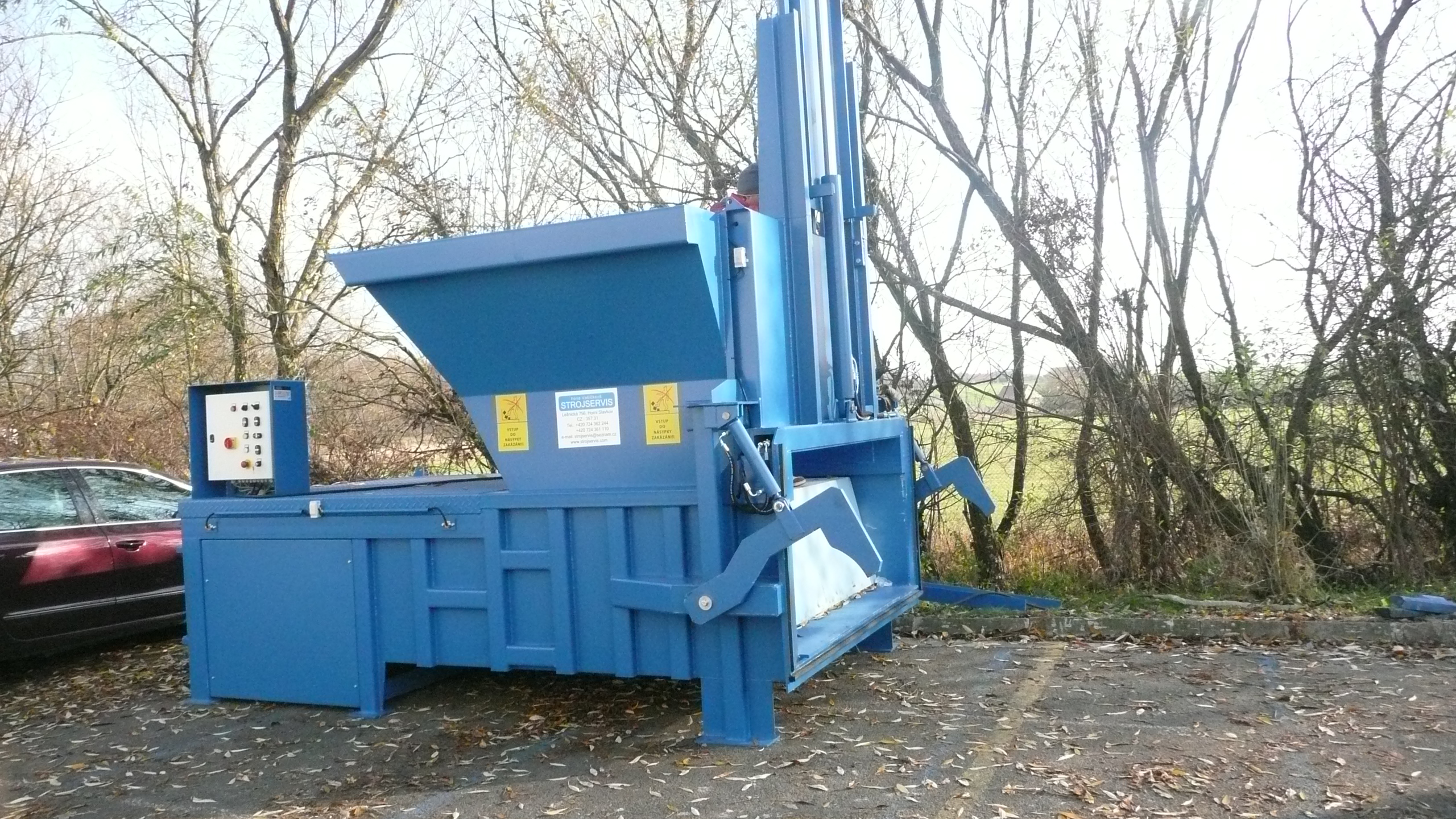

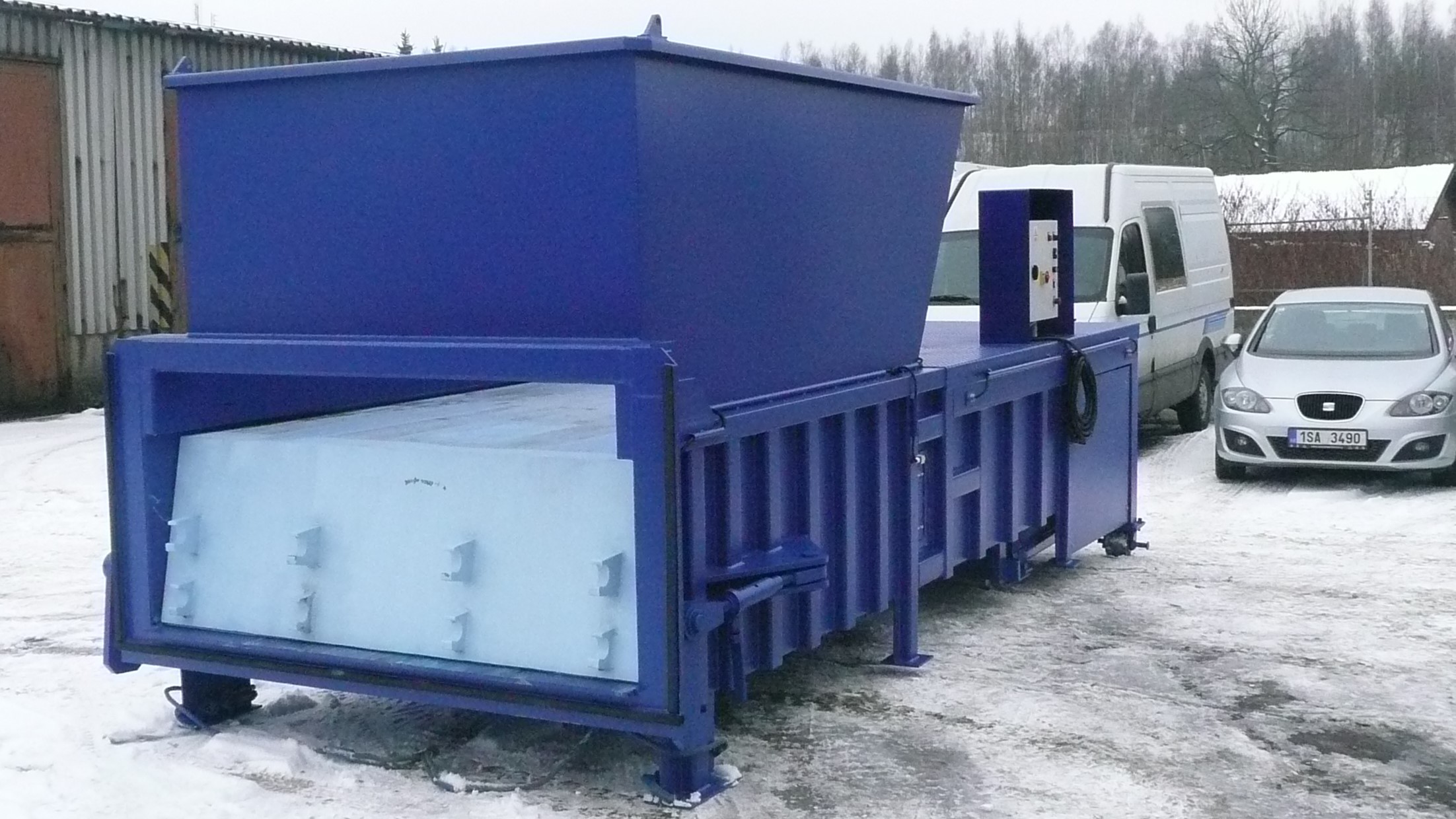

Stationary pressing SP45

This stationary press SP 45 is designed for providing maximum output for pressing industrial waste, cardboard and paper. The hopper size is up to 7 m3.

During one pressing cycle, the press can process approx 1.8 m3 of material into the additional container. The press can apply up to 45 tonnes power. Container 30 m3 can absorb 6-8 tonnes of cardboard. The press is equipped with efficient hydraulic aggregate. The slide width is approx 1,500 mm.

Manual version LR

The operator connect the press to the container manually- using the ratchet. Before disconnecting the operator manually closes the full container with two steel tubes. After disconnection the operator secure door way with net or with canvas which prevents the pressed material to come out of the container during the transport.

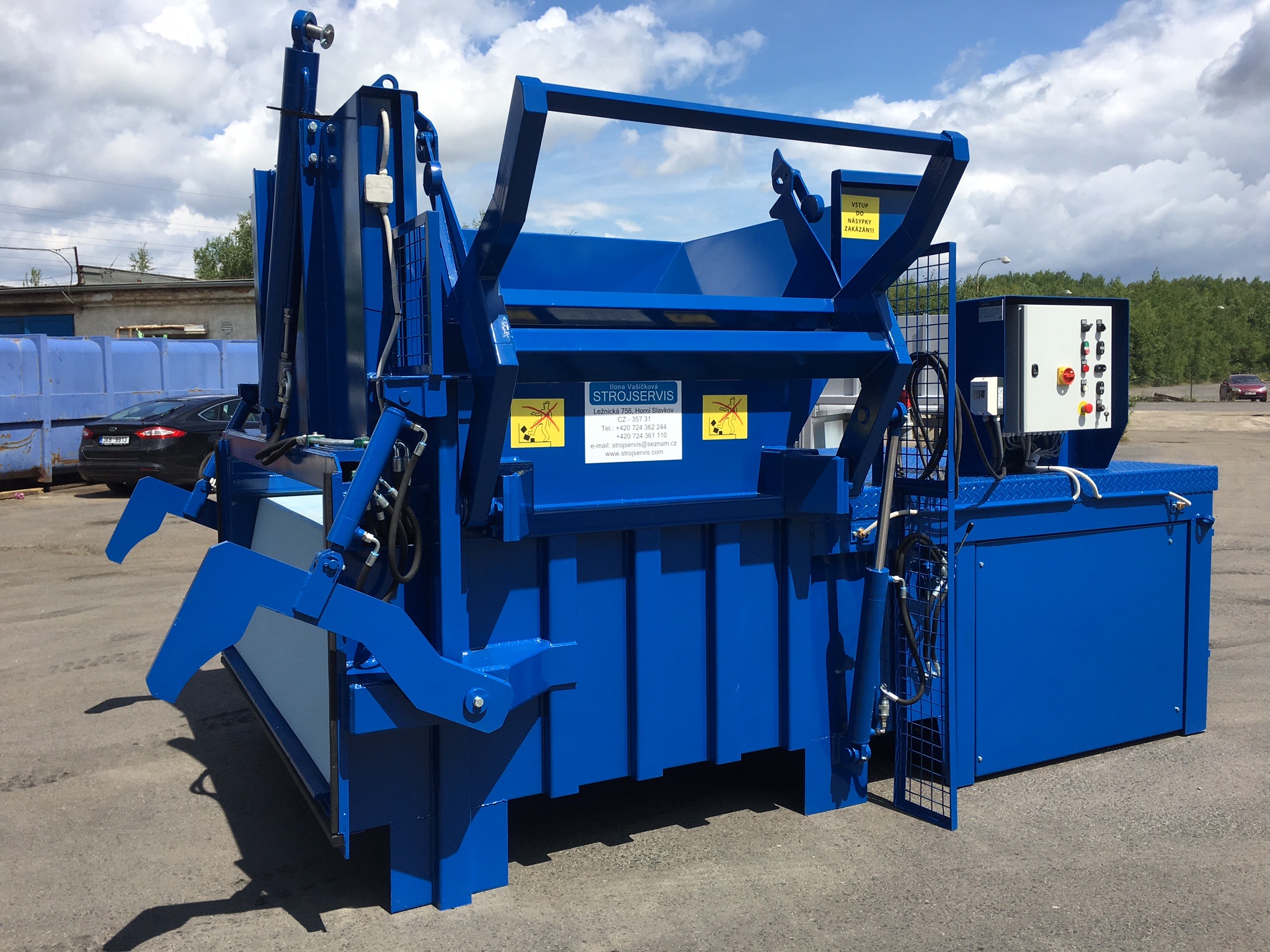

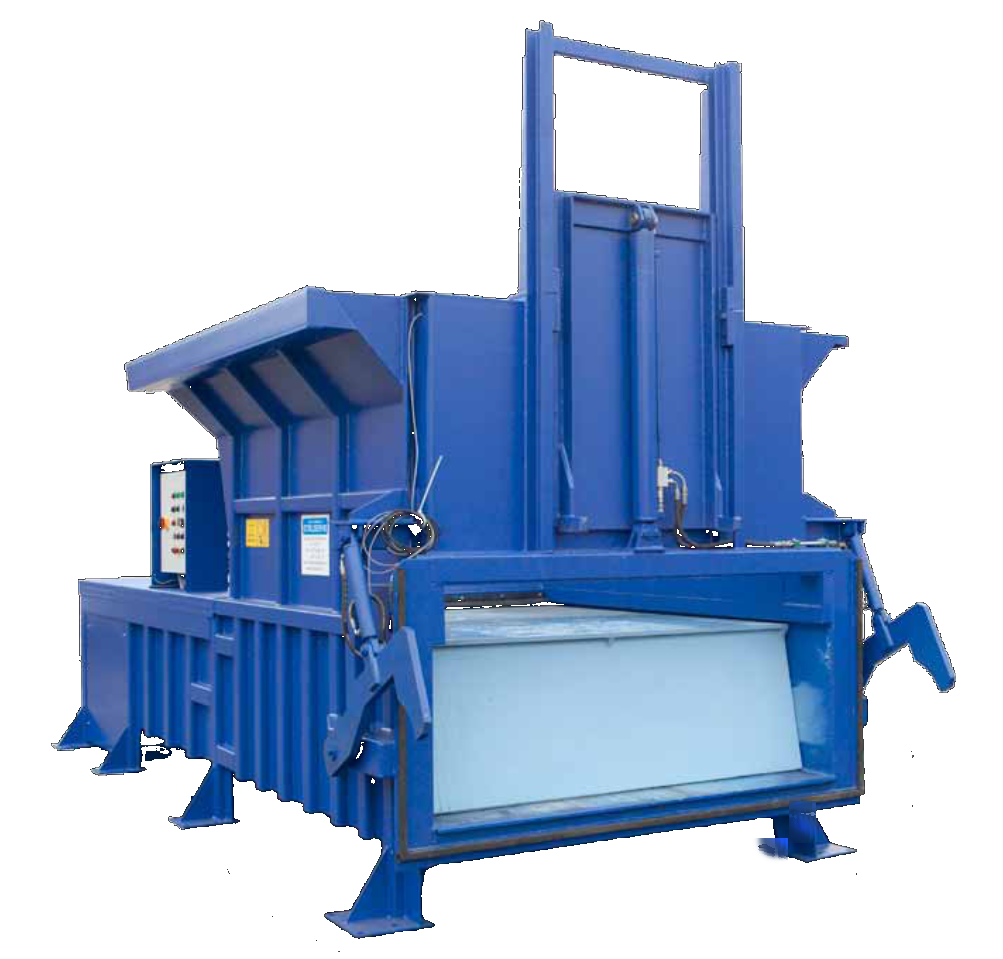

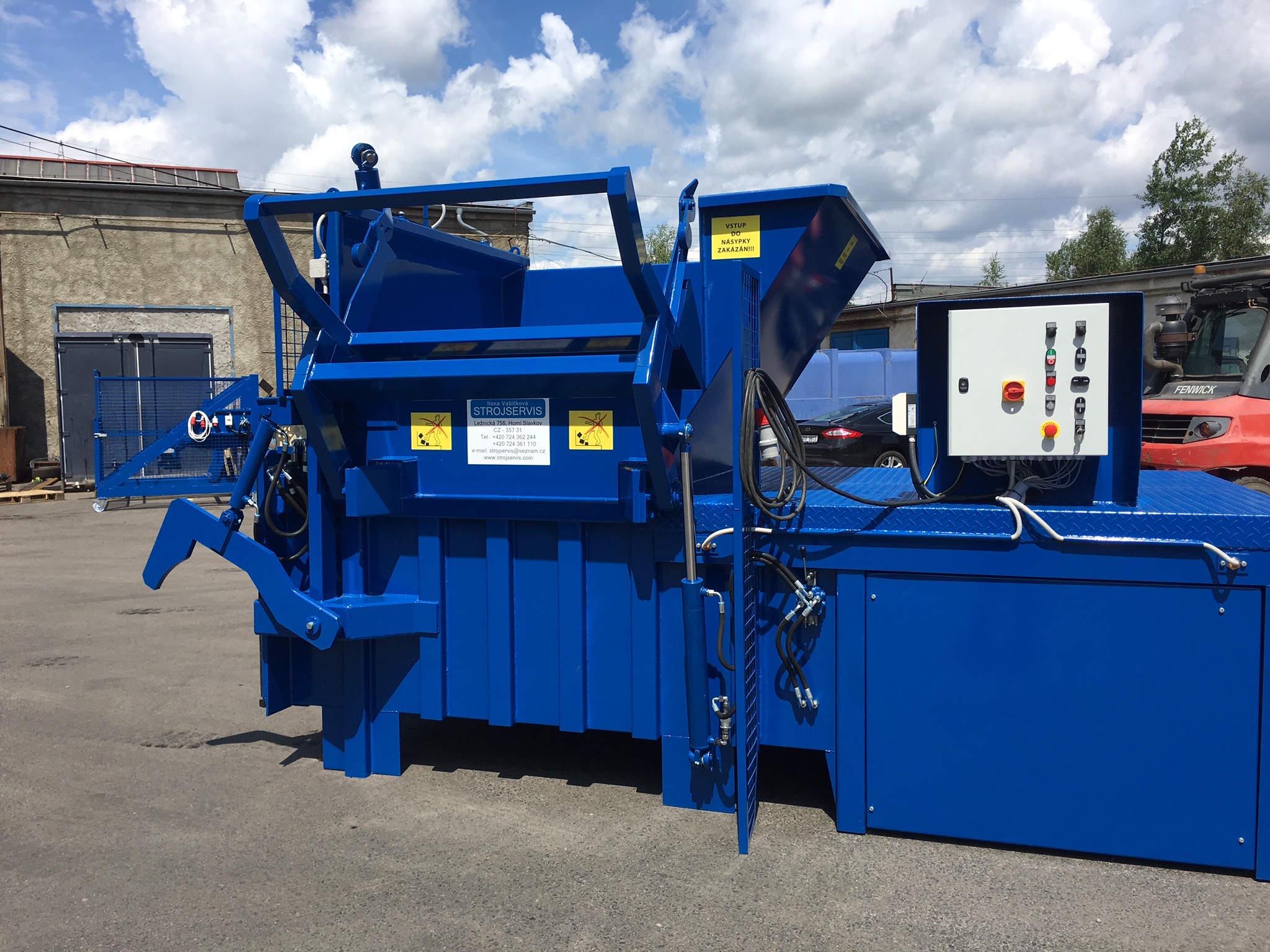

Automat version LH

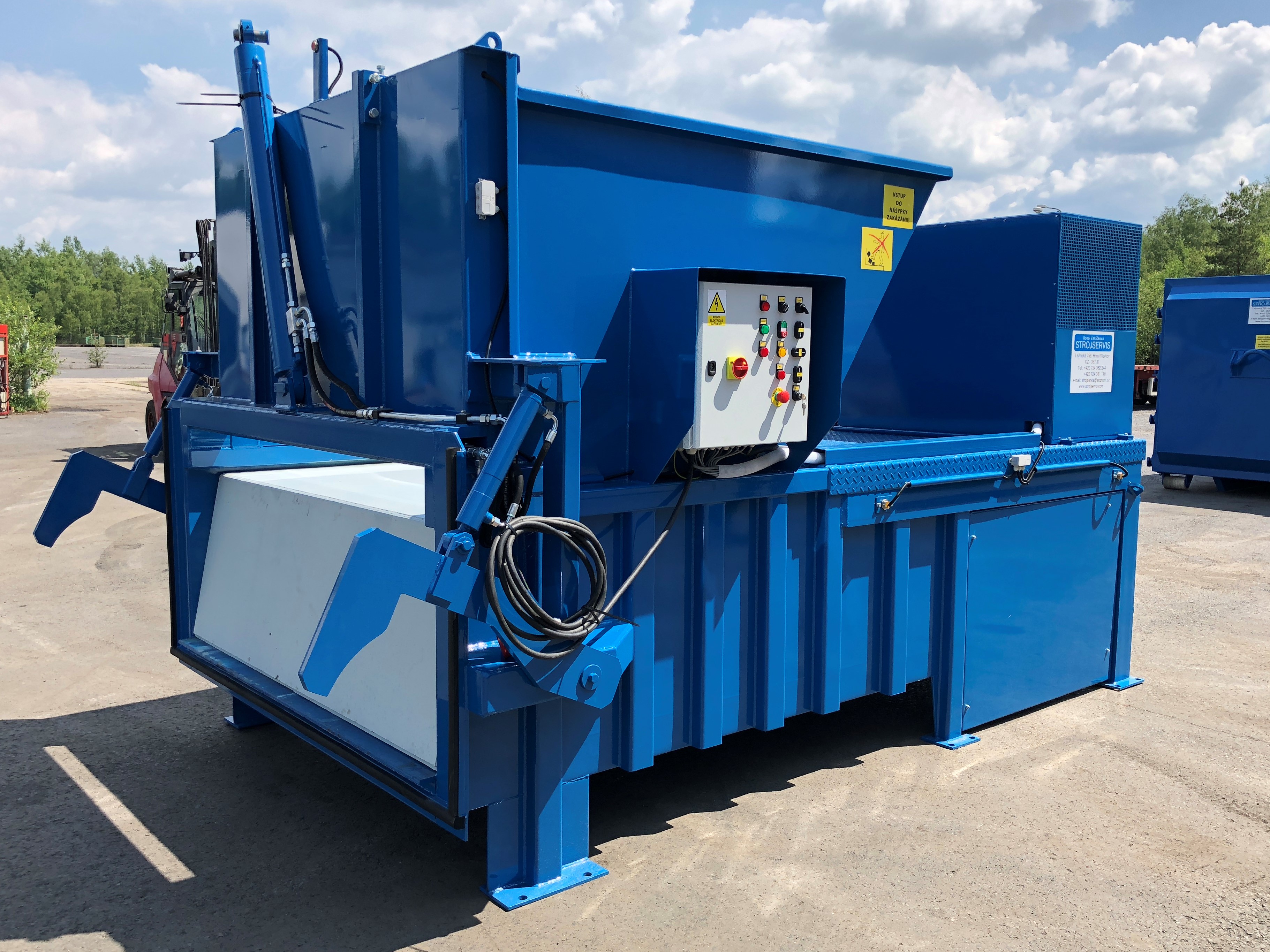

The press is connected to the container automatically by hydraulic coupling hooks and the guillotine opens upon the connection completion. Upon filling the container, it is automatically closed by means of the “guillotine” and disconnected from the press. The stationary press SP 45 is fixed on a concrete base flat. The press functions are controlled by means of buttons on the control panel. Upon customer request, the sound and optical indication of the press operation, the container fullness can be installed.

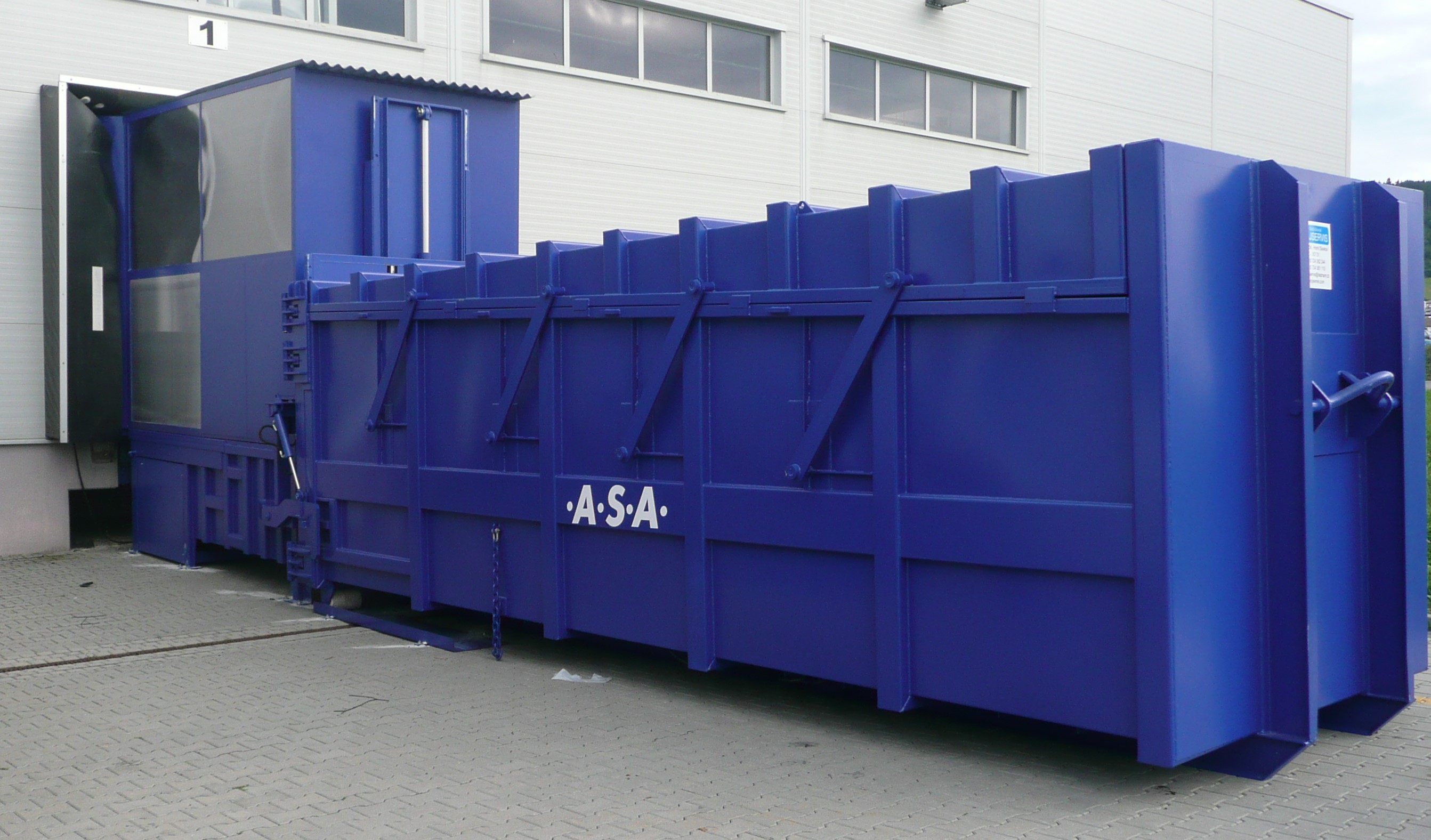

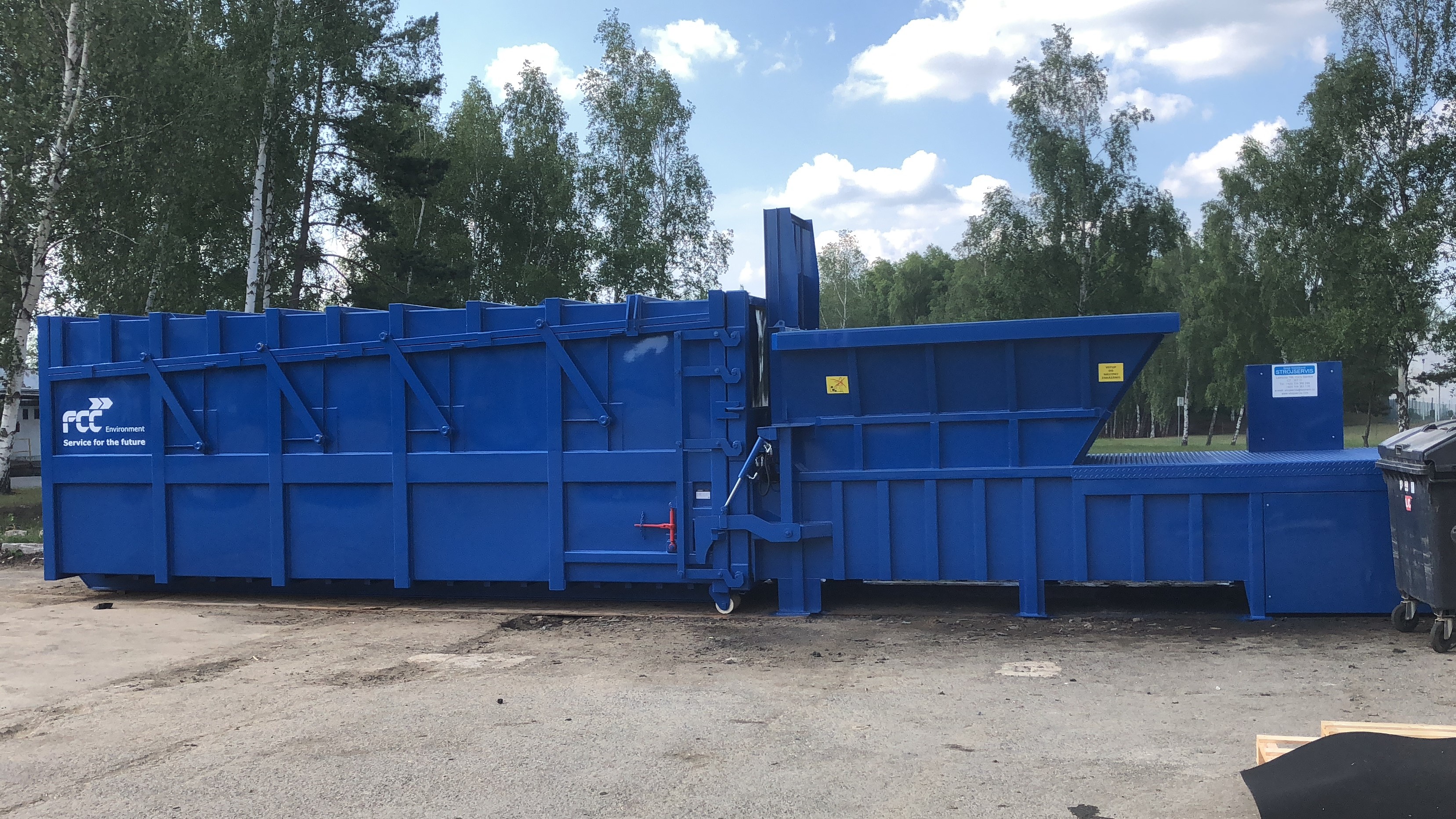

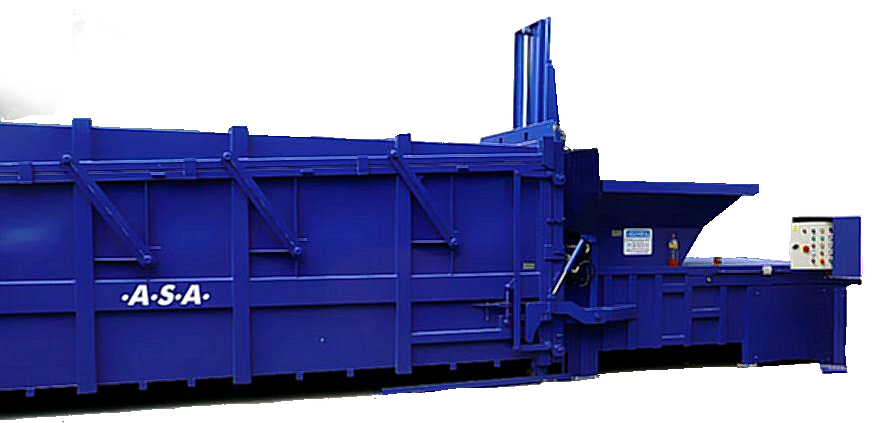

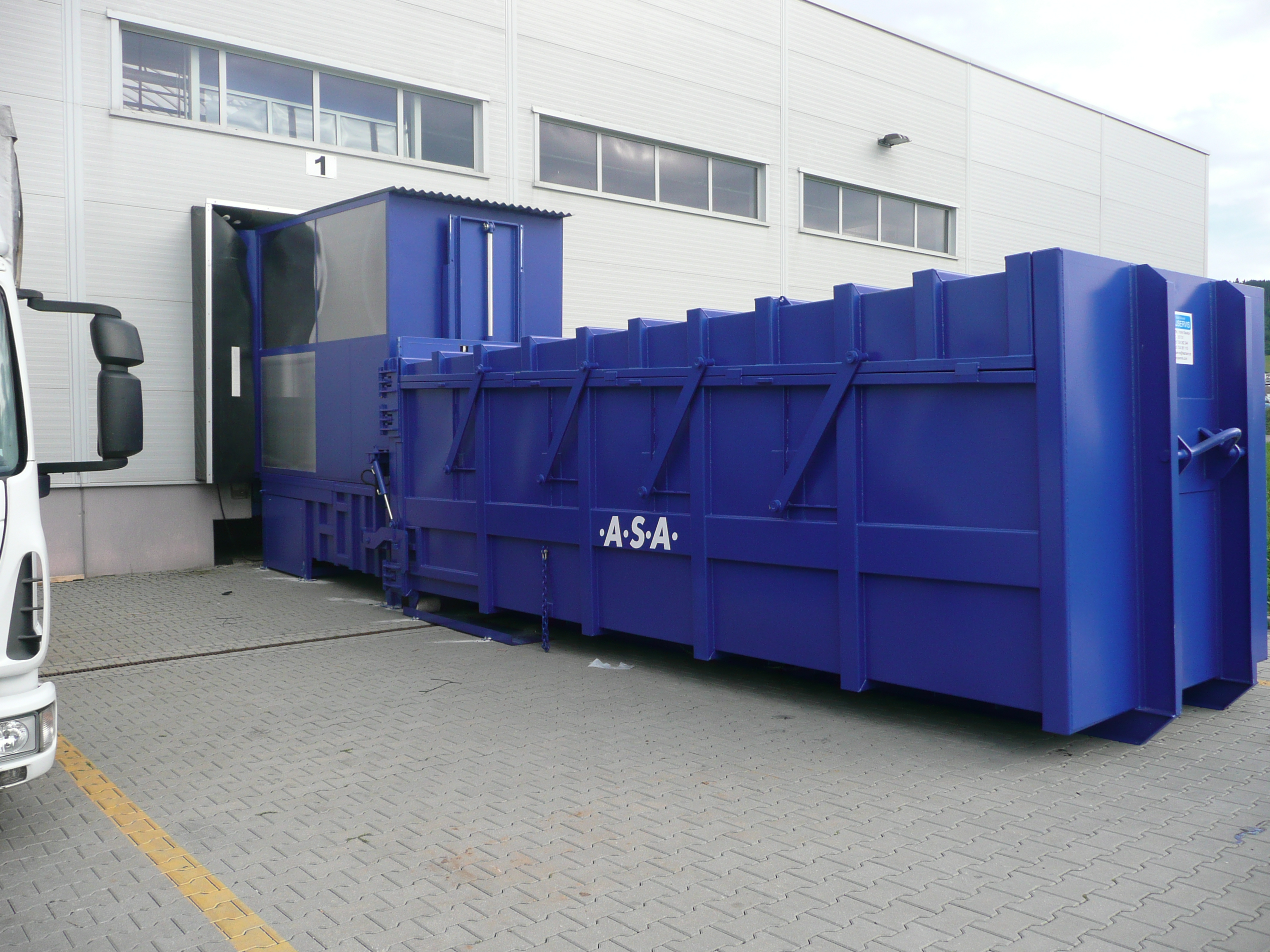

Containers ARK

With the stationary press SP45 we supply additional containers ARK with the volume 30 m3 only. Containers have cone-shaped side walls. Default containers can be equipped with mechanical device “chain wall” which helps releasing the pressed material during emptying procedure. Guiding lines (short or long ) are mounted in front of the press to help guide the container to the press.



Optional accessories:
  • Hopper lid – steel
  • Aluminium lid cover
  • Lid locking

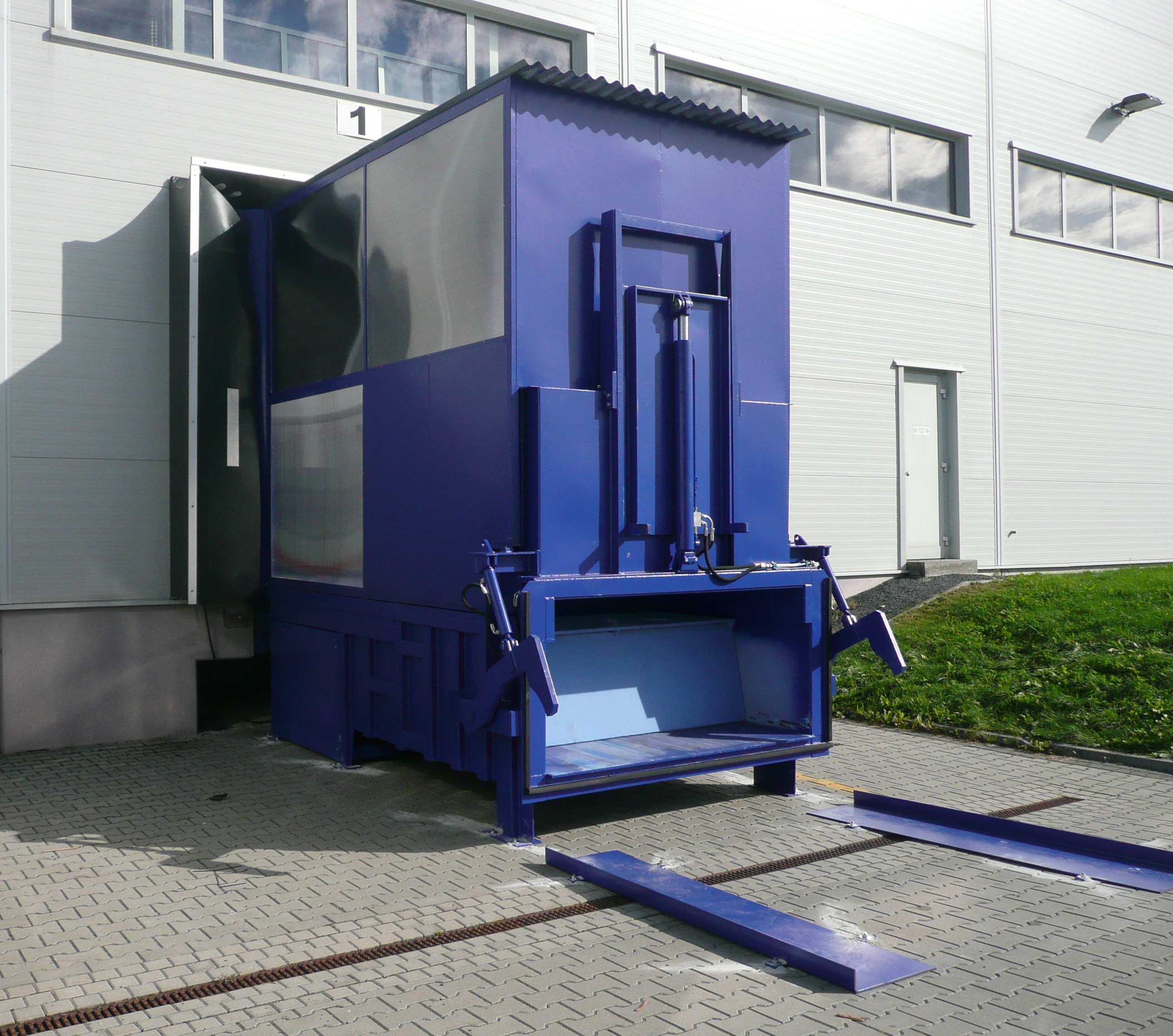

  • Higher hopper or tubes
  • Higher side
  • Optical sensor for the start-up
  • Rubber door and flap sealing
  • Flexible placement of hydraulic equipment
  • Stronger pump and engine
  • Oil cooling or heating
  • GSM module
  • Remote control from the platform
  • Two component paints
  • Handrail



TECHNICKÉ ÚDAJE

SP45

Volume20;25;30 m³
Hopper volume2,2 m³
Hopper length over press side1 500 mm
Hopper width over press side1 450 mm
Hopper height over press side1 000 mm
Volume of press cyclecca 1,35 m³

Press cycle time

cca 35 sec
Press slide width1 450 mm
Press slide height660 mm
Hopper length in front of press slide1 400 mm
Volume per hourcca138 m3
Working pressure240 bar

Pressing power

max 45 t
Length of machine L3 840 mm
Width of machine2 600 mm
Height of machine – till guillotine H12 170 mm
Infill height H21 640 mm
Electric input15 kW
Voltage3 x 400 V
Protection40 A
Weight3190 kg
CertificationCE
